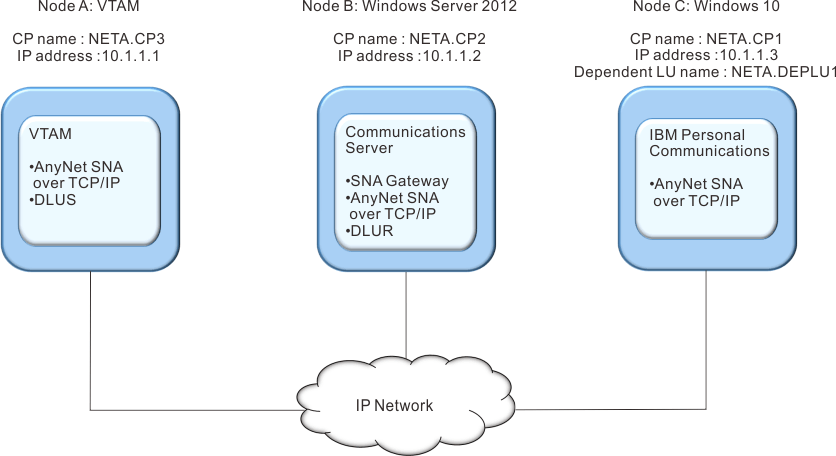

Example 6. 3270 Emulation via an SNA Gateway over a TCP/IP Network

Follow these steps to establish communication between the Windows® 8, Windows® 8.1, or Windows® 10 Workstation (Node C) and the VTAM® host (Node A).

For VTAM® Node A, add the following entry to the HOSTS file:

        10.1.1.2   CP2.NETA.SNA.IBM.COM
        10.1.1.2   DEPLU1.NETA.SNA.IBM.COM

For Windows® Server 2008 Node B, add the following entry to the HOSTS file:

        10.1.1.3  CP1.NETA.SNA.IBM.COM
        10.1.1.1  CP3.NETA.SNA.IBM.COM

For Windows® 8, Windows® 8.1, or Windows® 10 Node C, do as follows:

Add the following entry to the local HOSTS file:
```
    10.1.1.2    CP2.NETA.SNA.IBM.COM
```
Create a workstation profile using the Personal Communications configuration tool:
2. Click the Start/Configure Session icon; or click Configure from the Communication menu. The Customize Communication window is displayed.
3. Select the following options:
  - Host: zSeries™
  - Interface: AnyNet®
  - Attachment: TCP/IP LU 0,1,2,3
4. Click Configure.
5. Click Configure Link.
6. On the Configure Local System window, enter:
  PC Location Name: NETA.CP1
7. On the Configure AnyNet® Connection window, enter:
  - SNA domain name suffix: SNA.IBM.COM
  - Fully qualified CP name: NETA.CP2
8. Save your workstation profile.
