Example 8. 3270 Emulation from a Windows 8, Windows 8.1, or Windows 10 Workstation on Different IP Networks

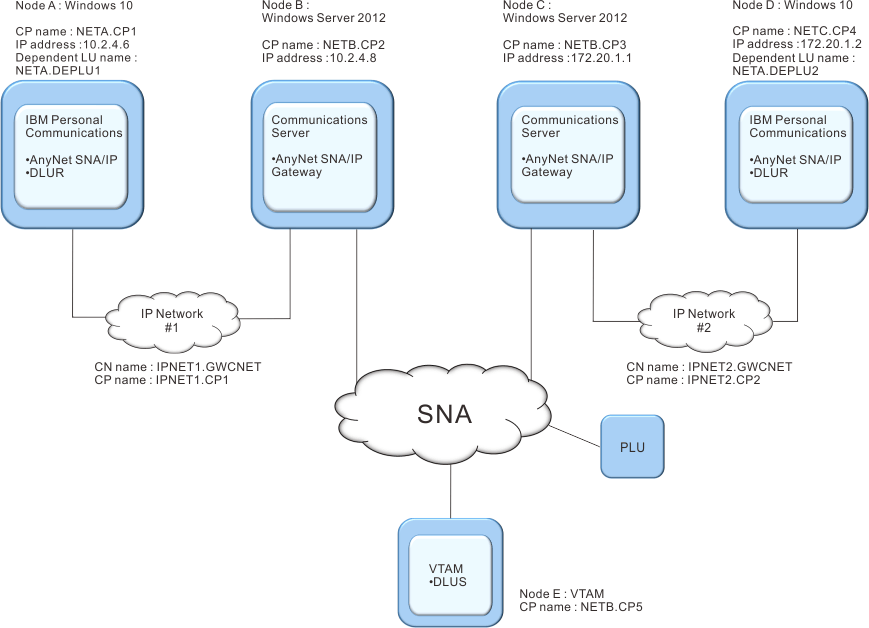

REQTEXT — Figure 1. 3270 Emulation on Different IP Networks

Follow these steps to establish communication from the Windows® 8, Windows® 8.1, or Windows® 10 workstation (Node A), and from Windows® 8, Windows® 8.1, or Windows® 10 (Node D), to the VTAM® Host (Node E).

For Windows® 8, Windows® 8.1, or Windows® 10 Node A, do as follows:

Add the following entries to the local HOSTS file:

        10.2.4.8    CP5.NETB.SNA.IBM.COM
        127.0.0.4   IPNET1.GWCNET
        127.0.0.3   IPNET1.CP1

Create a workstation profile using the Personal Communications configuration tool:
2. Click on the Start/Configure Session icon; or click Configure from the Communication menu. The Customize Communication window is displayed.
3. Select the following options:
  - Host: zSeries™
  - Interface: AnyNet®
  - Attachment: TCP/IP LU 0,1,2,3 via DLUR
4. Click on Configure.
5. Click on Configure Link.
6. On the Configure Local System window, enter:
  PC Location Name: NETA.CP1
7. On the Configure DLUR window, enter:
  - DLUS name: NETB.CP5
  - Routing Preference: Non-native only
8. On the Configure AnyNet® Connection window, enter:
  SNA domain name suffix: SNA.IBM.COM
9. Save your workstation profile.

For Windows® Server 2008 Node B, add the following entries to the HOSTS file:

        10.2.4.6    CP1.NETA.SNA.IBM.COM
        127.0.0.2   DEPLU1.NETA.SNA.IBM.COM
        10.2.4.6    DEPLU1.NETA.SNA.IBM.COM
        127.0.0.4   IPNET1.GWCNET
        127.0.0.3   IPNET1.CP1

For Windows® Server 2008 Node C, add the following entries to the HOSTS file:

        172.20.1.2  CP4.NETC.SNA.IBM.COM
        127.0.0.2   DEPLU2.NETC.SNA.IBM.COM
        172.20.1.2  DEPLU2.NETC.SNA.IBM.COM
        127.0.0.4   IPNET2.GWCNET
        127.0.0.3   IPNET2.CP2

For Windows® 8, Windows® 8.1, or Windows® 10 Node D, do as follows:

Add the following entry to the local HOSTS file:

        172.20.1.1  CP5.NETB.SNA.IBM.COM
        127.0.0.4   IPNET2.GWCNET
        127.0.0.3   IPNET2.CP2

Create a workstation profile using the Personal Communications configuration tool:
2. Click the Start/Configure Session icon; or click Configure from the Communication menu. The Customize Communication window is displayed.
3. Select the following options:
  - Host: zSeries™
  - Interface: AnyNet®
  - Attachment: TCP/IP LU 0,1,2,3 via DLUR
4. Click Configure.
5. Click Configure Link.
6. On the Configure Local System window, enter:
  PC Location Name: NETC.CP4
7. On the Configure DLUR window, enter:
  - DLUS name: NETB.CP5
  - Routing Preference: Nonnative only
8. On the Configure AnyNet® Connection window, enter:
  SNA domain name suffix: SNA.IBM.COM
9. Save your workstation profile.
