Example 4. 3270 Emulation via DLUR over a TCP/IP Network

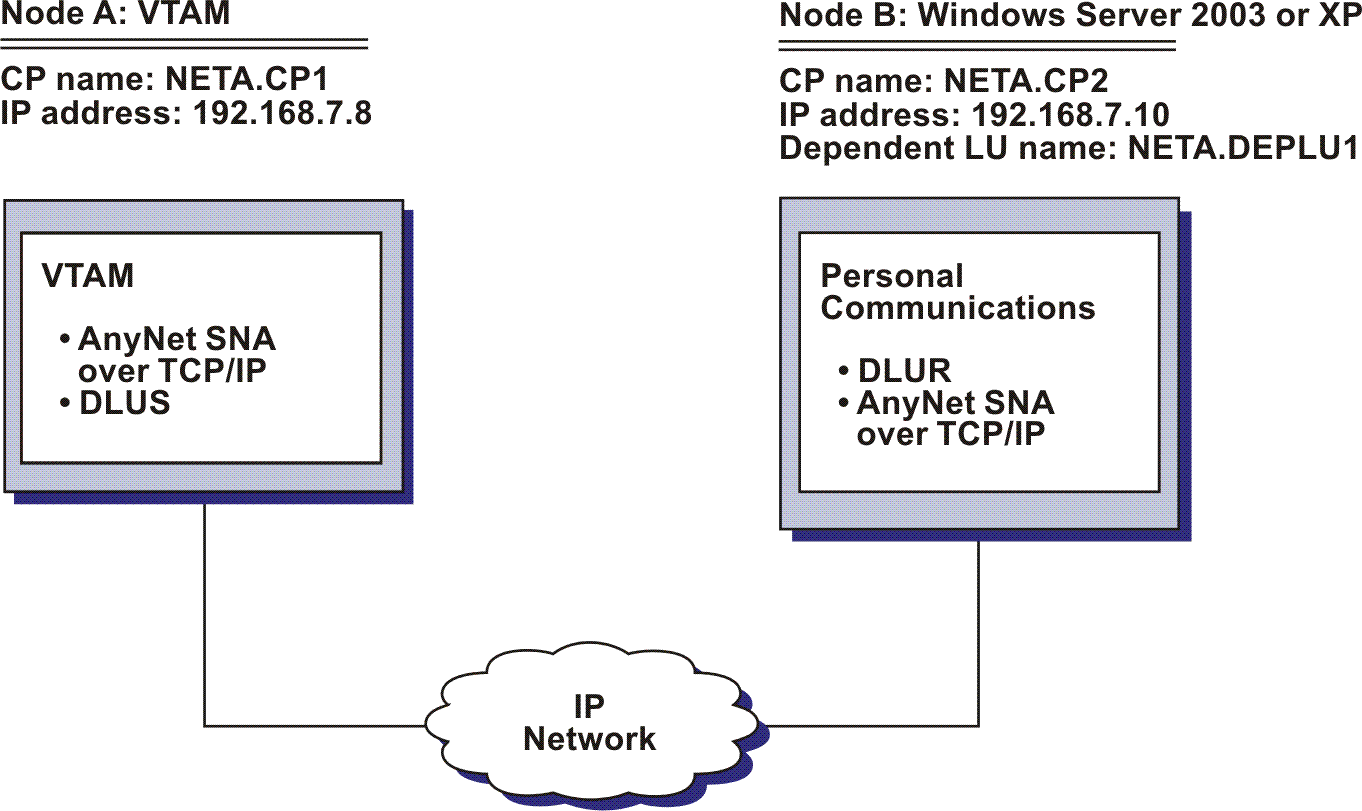

REQTEXT — Figure 1. 3270 Emulation via DLUR over a TCP/IP Network

Follow these steps to establish communication between the VTAM® Host (Node A) and the Windows® 2008 workstation (Node B).

For VTAM® Node A, add the following entry to the HOSTS file:

        192.168.7.10  CP2.NETA.SNA.IBM.COM
        192.168.7.10  DEPLU1.NETA.SNA.IBM.COM

For Windows® 2008 Node B, do as follows:

Add the following entry to the local HOSTS file:

        192.168.7.8   CP1.NETA.SNA.IBM.COM

Create a workstation profile using the Personal Communications configuration tool:
2. Click on the Start/Configure Session icon; or click Configure from the Communication menu. The Customize Communication window is displayed.
3. Select the following options:
  - Host: zSeries™
  - Interface: AnyNet®
  - Attachment: TCP/IP LU 0,1,2,3 via DLUR
4. Click Configure.
5. Click Configure Link.
6. On the Configure Local System window, enter:
  PC Location Name: NETA.CP2
7. On the Configure DLUR window, enter:
  - DLUS name: NETA.CP1
  - Routing Preference: Nonnative only
8. On the Configure AnyNet® Connection window, enter:
  SNA domain name suffix: SNA.IBM.COM
9. Save your workstation profile.
