Lesson 11: Deploy and test the payment application

During the deployment process, EGL creates HTML files and server-specific code to match your target environment.

About this task

Deployment is a two stage process:
  1. Internal deployment, when you deploy your handlers to a web project.
  2. External deployment, when you deploy the web project to an application server.
After you deploy the tutorial application internally, you can run it on an application server in the workbench.

Edit the deployment descriptor

About this task

The EGL deployment descriptor manages the internal deployment and is created automatically in each EGLSource folder. The main handler is in the MortgageUIProject, and you use the EGL deployment descriptor in the PaymentClient/EGLSource folder.

To edit the EGL deployment descriptor:

Procedure

  1. In the EGLSource folder, double-click the PaymentClient.egldd file.
    The EGL deployment descriptor opens in the Deployment Descriptor editor. EGL automatically added the embedded handlers to the list of Rich UI handlers to deploy.
  2. Because you are using a dedicated service, you do not need to add information to the Service Bindings Configuration section.
    The list is empty.
  3. Under Deployment Target, next to the Target project field, click New.

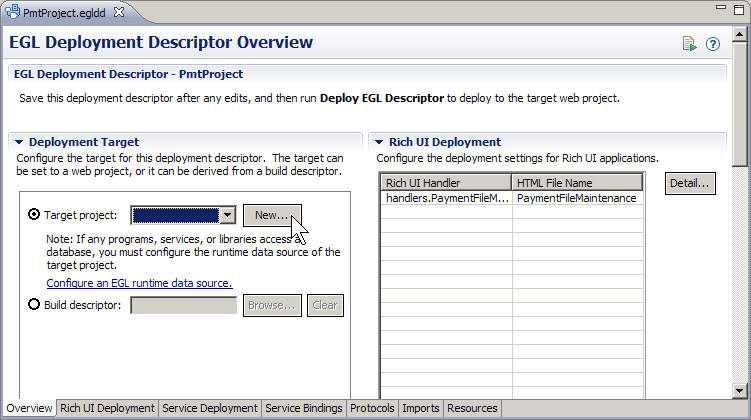

    The Overview page of the EGL deployment descriptor shows no services to generate, and shows the list of your handlers under Rich UI Deployment.
    The Dynamic Web Project wizard opens.
  4. In the Project Name field, enter the following name:
    PaymentWeb
    Any web project is acceptable. You are creating a simple one for the purposes of the tutorial.
  5. For Target runtime, select one of the following options from the list:
    • Apache Tomcat v6.0
    • WebSphere Application Server vn.n
    The value of the Configuration field changes automatically to match the new runtime environment.
  6. If you are deploying to a WebSphere® Application Server runtime, select Add project to an EAR, which is underneath EAR membership. If you add the project to an EAR, accept the default name that the wizard displays. For Apache Tomcat, ensure that the Add project to an EAR check box is clear.

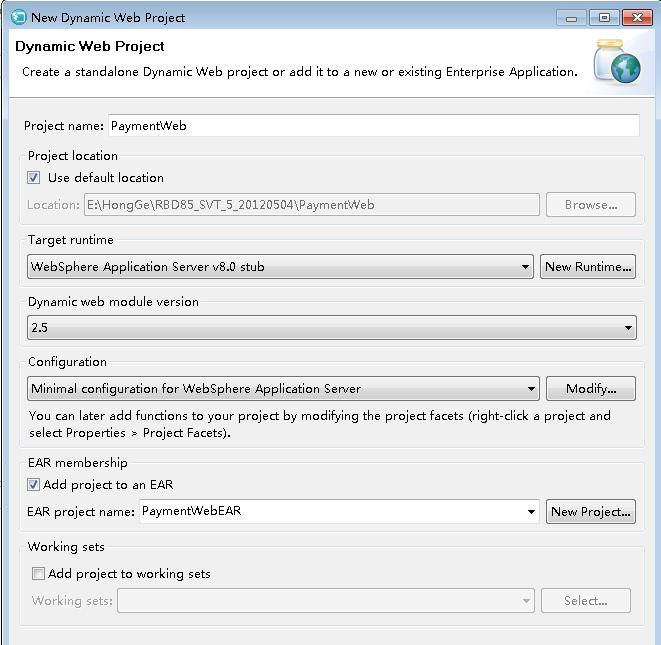

    The New Dynamic Web Project wizard, configured for WebSphere Application Server
  7. Click Finish.
    EGL creates the web project and re-displays the deployment descriptor.
  8. Save and close the deployment descriptor.

Set the data source for the new project

About this task

Before you can access the database from the new project, you must connect the project to the database.

Procedure

  1. In the Project Explorer view, right-click the PaymentWeb project and click Properties > EGL Runtime Data Source.
  2. Click Load values from a data tools connection.
  3. Click the down arrow next to the Connection field and select Derby Database Connection, which is the connection profile that you created in Lesson 2.

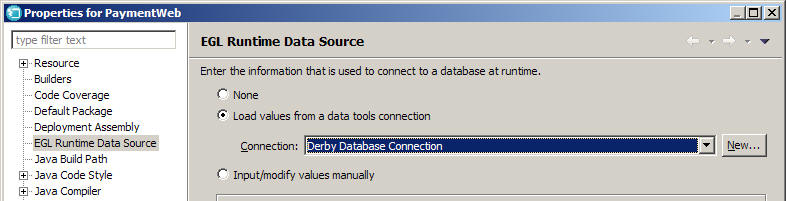

    The connection is available in the display.
  4. Click OK.

Deploy the Rich UI application

About this task

You can now launch the deployment process:

Procedure

  1. In the EGLSource folder, right-click the PaymentClient.egldd file.
  2. Click Deploy EGL Descriptor.

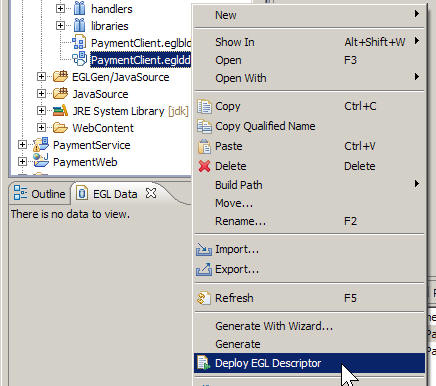

    The Deploy EGL Descriptor option
    The deployment process requires no further action on your part. The process copies many files and might take several minutes.
  3. If the Tomcat server shows a status of Restart, consider that statement a directive: restart the server by clicking the green Start icon in the upper right of the Servers view . Alternatively, you can right-click the server name and click Restart.
    When the server has restarted, the status is "Started, Synchronized".

Run the generated code

About this task

Procedure

  1. To run the internally deployed code, focus your attention on the target project, PaymentWeb. In the PaymentWeb/WebContent folder, find PaymentFileMaintenance-en_US.html.
  2. Right-click the file name and click Run As > Run on Server

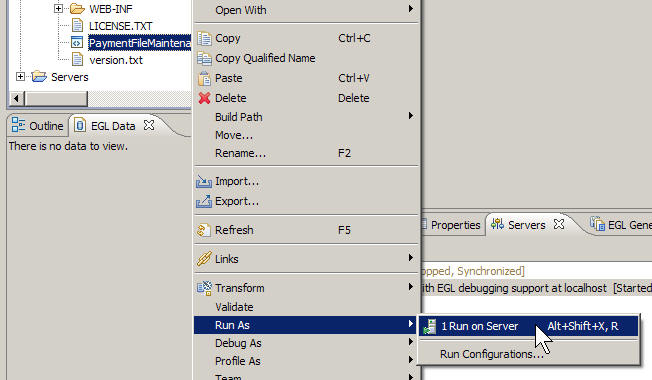

    The Run on Server option is shown in the menu
    The Run On Server window opens.
  3. In the Run On Server window, select the appropriate server and click Always use this server when running this project. Click Finish.

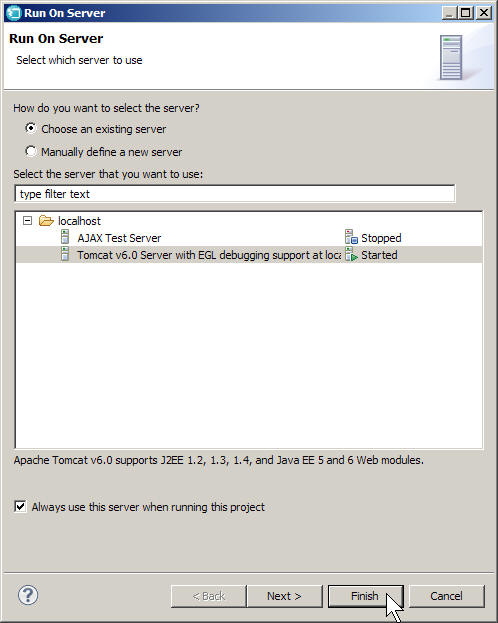

    The Run On Server window for Tomcat

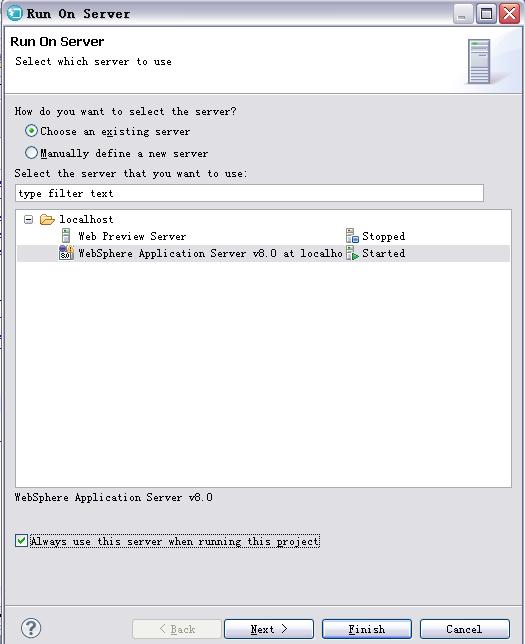

    The Run On Server window for WebSphere Application Server
  4. If you are using Tomcat and see a page not found error (404), check whether the server is showing a Restart status. If so, restart the server and refresh the page.

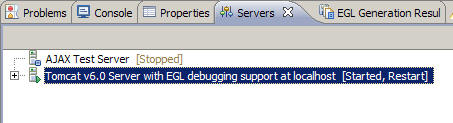

    The Server window asks you to restart the server.
    The page opens.
  5. Test the application by adding, deleting, and modifying payment records.

Lesson checkpoint

About this task

You learned how to complete the following tasks:
  • Edit a deployment descriptor to deploy a Rich UI handler.
  • Run the application on an application server.
