Lesson 5: Create the service

Create a dedicated service to access the database.

About this task

In this lesson, you create an EGL Service part, which is a generatable part. You must place each generatable part in a separate source file, and the name of the part must be the same as the name of the file.

Create a Service part

About this task

To create a Service part:

Procedure

  1. In the Project Explorer window, right-click PaymentService, and then click New > Service.
  2. In the New EGL Service Part window, enter the following information:
    1. In the EGL source file name field, enter the following name:
      SQLService
      EGL adds the .egl file extension automatically.
    2. In the Package field, enter the following name:
      services
    3. Verify that Create as web (SOAP) service and Create as web (REST) service are cleared, and leave the Implements Interfaces field empty.

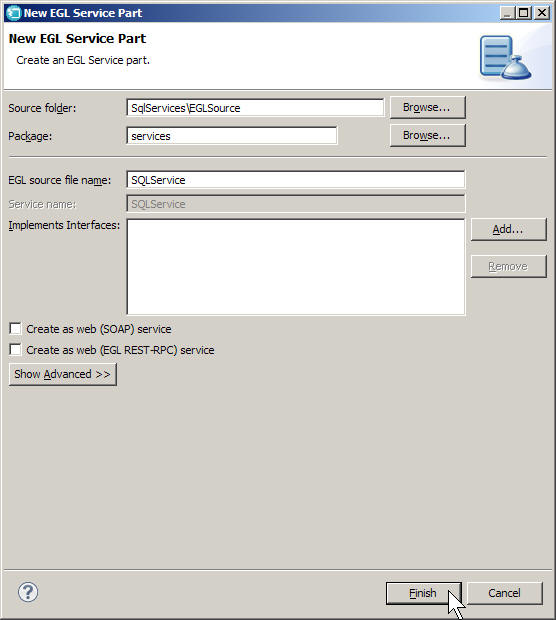

      The New EGL Service Part window shows the service name and package.
  3. Click Finish.
    EGL opens the new Service part in the editor.
  4. Remove the code from the file, leaving only the following lines:
    package services;

service SQLService

end
  5. Save the file, but do not close it.

Lesson checkpoint

About this task

You learned how to create an EGL Service part.

In the next lesson, you add code for the functions to SQLService.
