Loading the IVP data and connect to the CICS® IA plug-in

CICS® IA provides sample data that you can load into your new IA Db2® database. You can then connect to the database with the CICS® IA plug-in for CICS Explorer® and verify that your Db2® database is created successfully.

Loading the IVP sample data

To load the IVP sample data, review, and run job hlq.SCIUSAMP.Db2(CIUIVPLD). This job completes with a return code 0 or 4.

Viewing the IVP sample data

Before you complete this task, you must have the CICS® IA plug-in installed into your CICS Explorer® environment with an established a connection to the CICS® IA perspective. For more information about connecting to the CICS® IA perspective, see Getting Started with the CICS IA plug-in for CICS Explorer.

When you have a connection that is established and you have selected the CICS® IA perspective, do the following tasks:

In the CICS® IA plug-in, open the IA Navigation view.
Select Window > Show View > Other
Enter IA in the filter box and select the IA Navigation view.
Expand Cloud Explorer.
Expand IVP_PLATFORM and GENAPP_APPL.
Right-click the COMMERCIAL_PROPERTY_POLICY application and click Show All Resources. All resources for the selected operation are displayed in the Show Resources view.
In the Show Resources view, expand the TRANSID resource type.
Right-click the SSP4 transaction, then click Uses Resources > All Regions. The results are displayed in the Uses view.

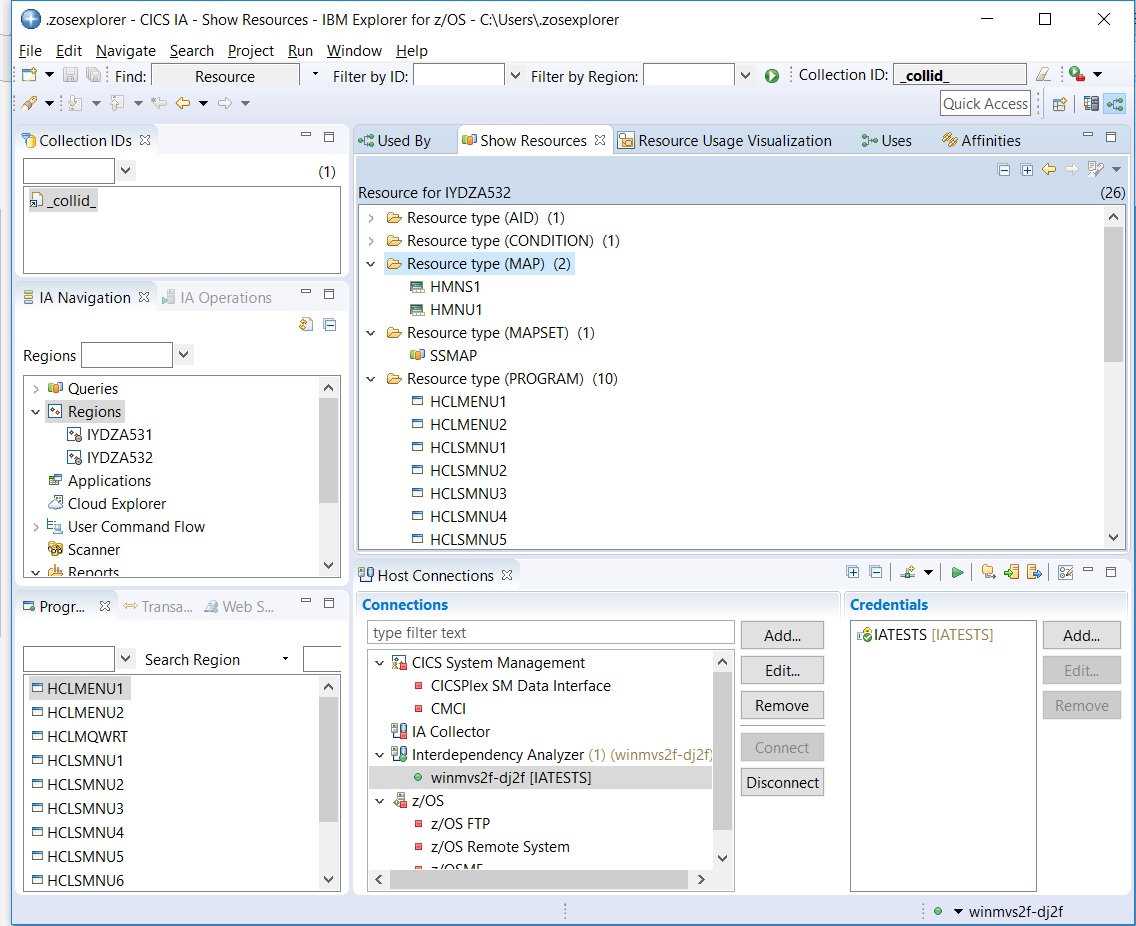

The following example screen capture shows the CICS® IA perspective:
Screen image of the CICS IA perspective in the CICS IA plug-in.

Screen image of the CICS IA perspective in the CICS IA plug-in.

Your CICS® IA database is now successfully configured and created.
