CICS® IA affinity-related components

The figure shows how the affinity-related components of CICS® IA relate to each other.

Refer to CICS IA dependency-related components for the Collector structure.

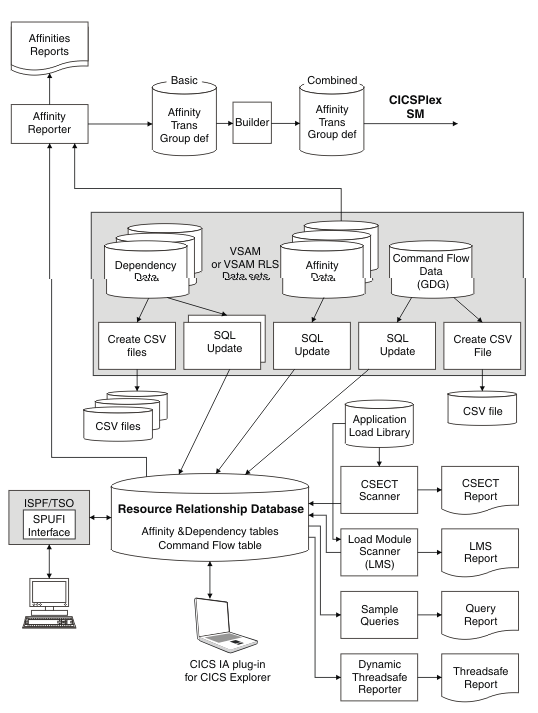

The diagram shows the affinity-related components of the reporting structure, including The Collector, The Affinity database objects, The CICS IA plug-in for CICS Explorer, The Affinities Reporter and The Builder. — Figure 1. The reporting structure of the CICS® IA affinity-related components

CICS® IA includes the following affinity-related components:

The Collector

The Collector is a CICS® transaction that runs in your CICS® region and intercepts selected CICS® and non-CICS programming commands. Depending on what you have specified, it records, in an MVS data space, details of either of the following:

The potential affinities created by the commands
The resources used by the commands

You can collect both dependency data and affinity data on the same region at the same time. The dependency data, affinity data, or both are saved to VSAM files.

The Affinity database objects

The Affinity database objects contain data extracted from the VSAM affinity files created by the Collector. It is updated periodically to add data from new or infrequently run applications.

The CICS® IA plug-in for CICS® Explorer

The CICS® IA plug-in provides a graphical front end to CICS® IA. For more information about the CICS® IA plug-in, see the IBM® CICS® IA plug-in for CICS® Explorer User Guide.

The Affinities Reporter

The Affinities Reporter is a batch utility that you can use to do any of the following:

Convert the affinity data in the Affinity database objects into reports in a readable format.
Convert the affinity data in the VSAM files into reports in a readable format. You might use this function if, for example, you do not have IBM® Db2®.
From the affinity data, in the Affinity database objects, create a file of affinity-transaction-group definitions in a syntax approximating to the batch API of CICSPlex SM. This file is intended as input to the Builder component.

The Builder

The Builder is a batch utility that takes as input the file of basic affinity-transaction-group definitions created by the Affinities Reporter. It produces a file of combined affinity-transaction-group definitions suitable for input to CICSPlex SM, which requires that a specific CICS® transaction ID (TRANSID) is in only one transaction group.
