Lesson 11: Add code to the map locator handler

Complete the background code for the user interface that you created in the previous lesson.

Finish the source code for MapLocatorHandler.egl

Procedure

Make sure that the MapLocatorHandler.egl file is open in the Rich UI editor. If you are in the Design view, click the Source tab.
Add a blank line just before the start function and declare a variable that is based on the Interface part you created:
```
lookupService GooglePlacesService{@restbinding};
```
The @restbinding property indicates that service-access details are in your code rather than in the EGL deployment descriptor. The decision is convenient but inflexible. A change in the service location requires that you change the source code. Lesson 14 introduces the EGL deployment descriptor, where you are likely to put service-access details in most of your development work.
To resolve a reference to the Interface part, press Ctrl-Shift-O. The next steps will add new red error marks, and you will not remove them until late in the lesson.
Do not add content to the start function.
Complete the checkForEnter function as follows:
```
function checkForEnter(event Event in)
   if(event.ch == 10)
      search();
   end
end
```
Consider the following background detail: The EGL runtime code invokes the checkForEnter function and passes an event object, which is a memory structure that includes details about the event. In this case, the event that caused the invocation is onKeyDown, and the event object includes the ASCII character that represents the user's keystroke. Specifically, the number 10 is the decimal value for the Carriage Return (the ENTER key) in the ASCII table, as noted here: ASCII table and description (http://www.asciitable.com).
The checkForEnter function is invoked only if the user presses a key such as Tab or ENTER when the text field has focus. The function in turn invokes the search function only if the key was ENTER. You will create the search function soon.
Complete the buttonClicked() function:
```
function buttonClicked(event Event in)
   search();
end
```
The buttonClicked function and its relationship to the button-specific onClick property ensures that the user's clicking the Search button invokes the search function.
To add the search function, place the following code at the end of the handler, before the final end statement in the file:
```
function search()
   localMap.zoom = 10;
   	localMap.removeAllMarkers();
   // show an initial marker, as necessary to display the map at all
   localMap.addMarker(new MapMarker{ latitude = "37.47", longitude = "-122.26",
		address = "I am here!", description = "San Francisco"});

   // Call the remote Google service, passing the type value
   call lookupService.getSearchResults( typeComboBox.value ) returning to showResults
      onException displayError;
end
```
Note the following details:
- The EGL Google map widget includes the zoom property, which specifies the scale of the map. Rather than specifying the large scale used for the default map of North Carolina, where the zoom value was 8, set the zoom value to 10, which produces a map that shows individual city.
- The EGL Google map widget also includes the addMarker function, which accepts a record of type MapMarker and identifies the map location of an input address.
  In this initial display for a search result set, the only detail that you provide to the localMap.addMarker() function is the city location marker.
Next, add the showResults function that is invoked if access of the Google Places service succeeds without error. Place the following code after the search function, before the last end statement in the file:
```
linkListing HyperLink[0];

for(i int from 1 to retResult.result.getSize() by 1)
		newLink HyperLink{padding = 4, text = retResult.result[i].name, href = "#"};
		newLink.setAttribute("title", retResult.result[i].vicinity );
		newLink.setAttribute("lat",
		retResult.result[i].geometry.location.lat);
		newLink.setAttribute("lng",
		retResult.result[i].geometry.location.lng);
		newLink.onClick ::= mapAddress;
		linkListing.appendElement(newLink);
	end
	listingBox.setChildren(linkListing);
end
```
Your call to the service returns an array of places details. Consider these aspects of the showResults function:
- Each element comprises a title (that is, a place name).
- The showResults function creates an array of hyperlink widgets and reads through the input array. For each element in the input array, the function creates an element in the array of hyperlink widgets.
- As shown by the following declaration, each hyperlink widget has displayable text and padding and includes a placeholder (#) instead of a web address:
```
newLink HyperLink{padding = 4, text = retResult.result[i].title, href = "#"};
```
  The hyperlink will cause the invocation of code rather than a web address. However, the presence of the placeholder ensures that the hyperlink shows text in a familiar way, with an underscore and in color, as if the user's clicking the hyperlink opens a web site.
- The function invokes the setAttribute function to place a value in the DOM tree, in an area of memory that is specific to the widget. In particular, the function stores a latitude and longitude for retrieval by another function.
- In relation to each hyperlink widget, the showResults function sets up a runtime behavior by assigning the mapAddress function to the onClick event.
- The complete array of hyperlink widgets is assigned as the only child of the listing box.

Place the following function after the showResults function:

function mapAddress(e Event in)

	// Show the marker when the user clicks the link
   businessAddress string = e.widget.getAttribute("address") as string;
   businessName string = e.widget.getAttribute("title") as string;
   lat string = e.widget.getAttribute("lat") as string;
   lng string = e.widget.getAttribute("lng") as string;
   localMap.addMarker( new MapMarker{ latitude = lat,
   		longitude = lng, address = businessAddress, description = businessName});
End

When the user clicks the hyperlink at run time, the mapAddress function retrieves the attributes that were set in the showResults function and sets a marker on the displayed map.

You now add the exception handler that receives data if access of the Google Places service fails. Place the following code after the mapAddress function, before the last end statement in the file:
```
function displayError(ex AnyException in)
   DojoDialogLib.showError("Google Service",
                           "Cannot invoke Google Places service: " + ex.message, null);
end
```
DojoDialogLib is a Library part in the com.ibm.egl.rui.dojo.samples project that you added to your workspace in Lesson 2. The showError function in that library displays information in a dialog. The function invocation includes a string named message, which is in the exception record that the EGL runtime code passes to the displayError function.
Format your code by pressing Ctrl-Shift-F, resolve the references by pressing Ctrl+Shift+O, and save the file. If you see errors in your source file, compare your code to the file contents in Finished code for MapLocatorHandler.egl after Lesson 11.

Test the new portlet

Procedure

Because this portlet works independently, you can test it separately.

Make sure to save the file, and then click Preview.
EGL displays the entry form with the default North Carolina map.
Select mortgage in the selection list for type.
Press the Enter key or click the Search button.

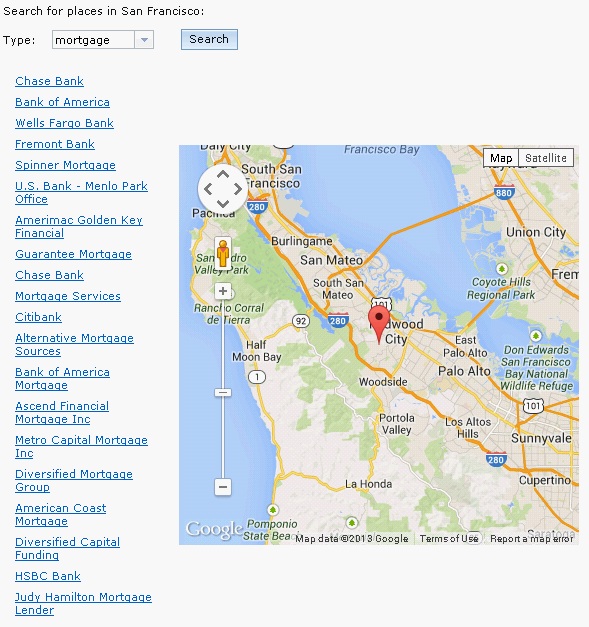

A list of mortgage places is displayed down the left side of the screen. On the right is a map of San Francisco.
Note:
Note: The Google Places Search Service sometimes returns no data, in which case an error message is displayed because of a null exception. If the service is unavailable or does not return data, click Cancel and wait for a later time to complete the tutorial.
Click any of the names in the left column.
The map displays a marker that shows the location of the business. If you hover over the marker, the name of the name is displayed.
Redo the same search or search on a nearby cafe. The markers that you placed on the map remain there.
If you want to remove all markers before each search, click the Source tab and add the following line at the top of the showResults function:
```
localMap.removeAllMarkers();
```
Test your work in the Preview tab.
Close the file.

Lesson checkpoint

About this task

You learned how to complete the following tasks:

Create and use a variable that is based on the Local Search service.
Respond to user keystrokes.
Use the DOM tree to pass values from one function to another.
Begin to use a map widget.

In the next lesson, you embed the new handler in the application.
