IBM Z Workload Scheduler task structure

The task dispatcher, EQQZMAIN, waits for one of the following events to occur:
  • A stop or a modify command entered by the z/OS operator. If an operator stop command is received, all the subtasksare posted to terminate.
  • A message created by a subtask. When messages are created by IBM Z Workload Scheduler subtasks, they are formatted and written to the message log data set.
  • Subtask termination.
The subsystem job-step task ends when all subtaskshave ended.

IBM Z Workload Scheduler subsystem tasks shows the tasks that can be started as subtasks by the job-step task when IBM Z Workload Scheduler is installed.

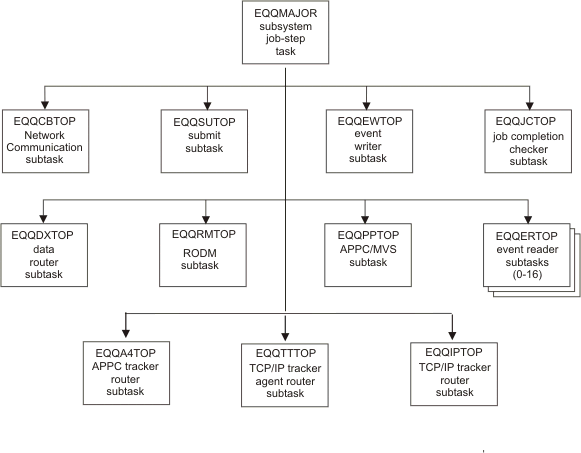

Figure 1. IBM Z Workload Scheduler subsystem tasks

Figure showing the tasks that can be started as subtasks by the job-step task when IBM Z Workload Scheduler is installed.

If the controller is installed on the system, the normal-mode-manager (NM) subtask will be attached. The NM subtask will attach the tasks that reference the current plan as subtasks. These tasks are shown in controller subtasks.

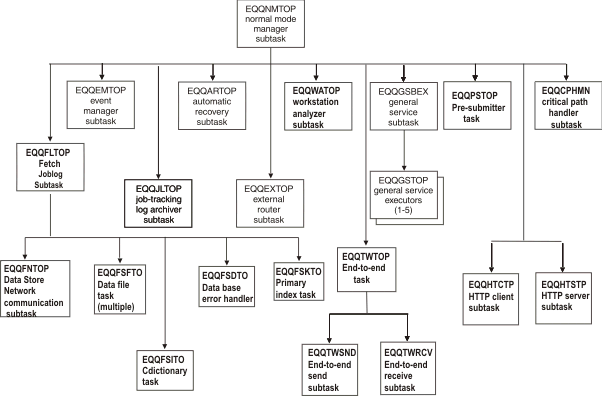

Figure 2. controller subtasks

Figure showing controller subtasks
