Using the EGL debugger to debug VSE DL/I applications

You can debug EGL programs that access DL/I databases on z/VSE®.

The EGL debugger uses the VSE Connector Client to access DL/I databases under CICS® on z/VSE®. Most DL/I operations are support, but there are some restrictions:
  • Only DL/I database PCBs are supported. The debugger cannot access an I/O PCB, TP PCBs, or GSAM PCBs..
  • The following DL/I calls are not supported: GSCD and XRST.
  • All database PCBs in the IMS™ PSB must be named and the name must match the corresponding pcbName property in the EGL PSB. Alternatively, if your program is using the CBLTDLI interface, the PCBs in the EGL PSB must be in the same position as the PCBs in the VSE PSB.

Configuring the host environment

Several prerequisites are needed on the host, for debugging:
  • The AIBTDLI interface must be installed.
  • DL/I VSE 1.11 or later must be installed.
  • APAR PQ39683 for DL/I must be applied.
  • Your CICS/DLI system should have all PSBs defined in the DL/I online nucleus DLZNUCxx and it should have an active MPS system (in the CICS® log, look for the line "DLZ093I MPS STARTED WITH APPLID=MYCICS"). The online nucleus must have an entry for the program DLZBPC00 and any PSB that you need to access remotely.
    For example,
    DLZACT TYPE=PROGRAM,PGMNAME=DLZBPC00,PSBNAME=(myPSB1,myPSB2...)
  • The DL/I task termination exit DLZBSEOT must be resident in the SVA.
  • In case above requirements are not met, you get a exception telling that the DLI Plugin is disabled.
CAUTION:
The following exception is displayed if the requirements are not met:
DLI Plugin is disabled.

Local workspace configuration

Take the following actions in your local workspace to enable remote debugging:
  • On the Window > Preferences > EGL > Debug page, clear the Set systemType to DEBUG option. This will force EGL to use the system type from the build descriptor option.
  • To use the Remote DL/I for VSE, the EGL Build Descriptor used for debugging will need to be set as follows:
    destHost
    The VSE host name or IP address.
    destUserID
    The userID for connecting to the VSE host.
    destPassword
    The password for connecting to the VSE host.
    destPort
    The port number that the VSE Connector Server is listening on. If this option is not specified, port 2893 will be used.
    imsID
    The APPLID of the CICS® region to be used for Remote DL/I access (the CICS® region must have an active MPS system).
    imsPSB
    The name of the host PSB to use for debugging. This overrides the PSB option in the EGL debugger preferences.
    system
    Either VSEBATCH or VSECICS.
    debugTrace
    Set this to yes if an error occurs with the debugger. Trace output is written to the Rational® Business Developer console.

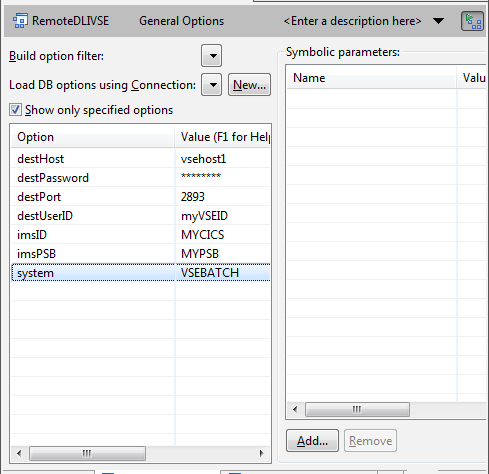

    Build Descriptor
  • Set the EGL Debug preferences as follows:

    On the Window > Preferences > EGL > Debug page, ensure that VSEConnector.jar and cci.jar are in the Class path oder section.

  • On the Window > Preferences > EGL > Debug > Debug IMS DLI page, enter the following information:
    ConversionTable
    Defines the language of the host.
    PSB Name
    Select one of the following options for specifying the PSB name:
    Review the build descriptor option imsPSB
    A non-blank value in build description option imsPSB takes precedence over any other source of PSB name.
    Prompt user for PSB name
    At the start of each debug session, the user is prompted to enter the PSB name used to access DL/I data. With the ODBA interface, the PCB must be named and must match a PCB in the PSB defined either in the program for IMS™ or in dliLib.psbData for CICS®.
    Use PSB name from DLILib.psbData
    The default for CICS®. The program still uses a DL/I property for transaction commit/rollback determination, but the PSB name comes from the psbData record in dliLib.
    Use program name for PSB name
    The default for IMS™. This is either the value of the alias property (if used), or the program name. This value is folded to upper case.

The EGL Debugger requires one of the following in your EGL program:

  • For callInterface = DLICallInterfaceKind.CBLTDLI, the EGL PSB must have the PCBs in the same order as in VSE PSB in terms of the number of PCBs and their respective positions.
  • For callInterface = DLICallInterfaceKind.AIBTDLI , which is the default if no callInterface option is specified, the PCBs in the EGL PSB must have the same name as the PCBs in the VSE PSB.
