Introduction

Tutorial application

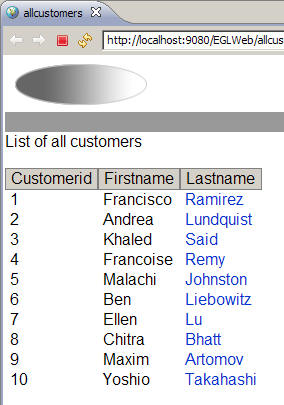

In this tutorial, you will create an EGL web project and import a sample database. You will then create a simple EGL web application that works with this database. The first of the two web pages in your application shows a list of customers from data stored in the database:

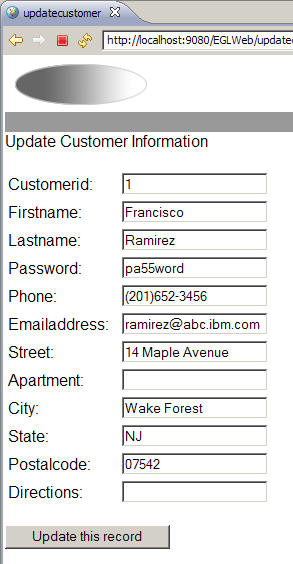

The second web page shows details about one customer and allows users to change those details:

EGL is the language that you use to manage the interaction between users and the database:

• After retrieving data from the database, the functions that you write in EGL can apply business rules as appropriate.
• When preparing to present data to users, those functions can alter characteristics of the web-page display, even choosing which page to present.
• On accepting the users' responses, those functions can apply additional business rules before storing the data.

Each of the two pages pictured above are controlled by EGL logic parts called Handlers, which control the runtime interaction with a user interface. In this case, the Handler parts are JSF Handler parts, Handler parts specialized to control a single web page at run time. A JSF handler's function is invoked by a user click, and the function in turn invokes a library function that you create. The result is that a user working at a web browser can view and alter data stored in a database.

As shown in this tutorial, EGL promotes code reuse in several ways:

• First, EGL lets you define DataItem parts, which are a simple type of EGL data structure. A DataItem part is based on a single primitive data type, with any number of added EGL properties. For example, if your application uses many telephone numbers, you can define a DataItem to represent a telephone number. This DataItem would use a numeric primitive as its base and have properties that define its exact length and output formatting. You can then create many variables or other data parts in your code based on that single DataItem part.

  DataItem parts are similar to entries in a data dictionary, with each part including details on data size, type, formatting rules, input-validation rules, and display suggestions. You define a DataItem once and can use it as the basis for any number of variables or record fields.

• Second, EGL lets you define Record parts, which are used as the basis for structured data. A Record part is a collection of other data parts (such as DataItem parts or primitives) that are organized into a hierarchical structure. This kind of data part is often used to create variables that access a file or relational database.

  In this tutorial, you create a record part that represents contact information for a customer. This Record part contains data items representing information about a customer, such as first and last name, telephone number, and address. Also, this Record part is specialized, or stereotyped, as an sqlRecord part, to work directly with the database.

  A Record part can reference a series of DataItem parts, as shown in this tutorial. If you organize your data in this way, you can realize a more consistent definition of your data parts and can increase efficiency over time. Your changes to a single DataItem part will cause a change in every variable that accesses the related, stored data.

• Third, EGL lets you create source libraries, which contain functions, data parts, and constants that provide a basis for logic reuse and for modular programming based on proven code.

EGL also provides the Data Access Application wizard, which you will use to create the elementary code necessary to access a relational database. This wizard creates EGL parts that have these specific purposes:

• Record parts that reflect the characteristics of each database table.
• DataItem parts that reflect the characteristics of each table column.
• Source libraries that include functions to create, read, update, and delete rows in the database.

  The library functions include parameters that are based on the Record parts created by the wizard. You can start to build a robust application just by invoking those functions with arguments that are based on the same Record parts.
