Understanding how browsers handle a Rich UI application

This topic gives details on how browsers handle a Rich UI application at run time. The purpose is twofold:
  • To help you learn the technology faster, as is possible if you understand the runtime effect of what you code at development time
  • To make it easy for you to do advanced tasks

When a user enters a web address into a browser, the browser transmits a request to a web server, which is usually on a second machine. The address identifies a specific server and indicates what content is to be returned to the browser. For example, if you enter the address http://www.ibm.com, an IBM® server replies with a message that the browser uses to display the IBM® home page. The question that is of interest now is, how does the browser use the message?

The browser brings portions of the message into an internal set of data areas. The browser then uses the values in those data areas to display on-screen controls, which are commonly called widgets. Example widgets are buttons and text fields.

Consider the following web-page content:


Example web page
Seven widgets are displayed:
  • The enclosing box is myBox
  • The upper box within myBox is myBox02 and includes the text field myHelloField
  • The lower box within myBox is myBox03 and includes the text field myInTextField, the button myButton, and the textField myOutTextField

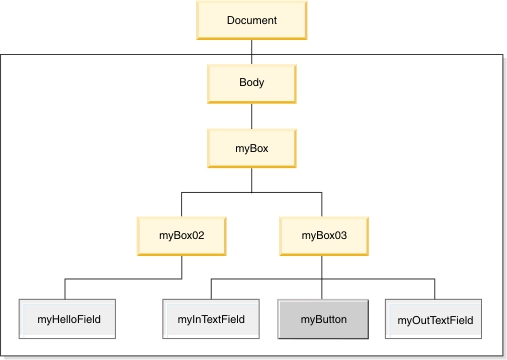

The internal data areas used by the browser are represented as an inverted tree:


Example DOM tree

The tree is composed of a root, named Document, and a set of elements, which are units of information. The topmost element that is available to you is named Body. The elements subordinate to Body are specific to your application.

A set of rules describes both the tree and how to access the data that the tree represents. That set of rules is called the Document Object Model (DOM). We refer to the tree as the DOM tree, and we refer to the relationships among the DOM elements by using terms of family relationships:
  • myBox03 and myInTextField are parent and child
  • myBox and myButton are ancestor and descendant
  • myInTextField, myButton, and myOutTextField are siblings
In the simplest case (as in our example), a widget reflects the information in a single DOM element. In other cases, a widget reflects the information in a subtree of several elements. But in all cases, the spacial relationship among the displayed widgets reflects the DOM-tree organization, at least to some extent. The following rules describe the default behavior:
  • A widget that reflects a child element is displayed within the widget that reflects a parent node
  • A widget that reflects a sibling element is displayed below or to the right of a widget that reflects the immediately previous sibling element

We often use a technical shorthand that communicates the main idea without distinguishing between the displayed widgets and the DOM elements. Instead of the previous list, we might say, "A widget is contained within its parent, and a sibling is displayed below or to the right of an earlier sibling."

The DOM tree organization does not completely describe how the widgets are arranged. A parent element may include detail that causes the child widgets to be arranged in one of two ways: one sibling below the next or one sibling to the right of the next. The display also may be affected by the specifics of a given browser; for example, by the browser-window size, which the user can update at run time in most cases. Last, the display may be affected by settings in a cascading style sheet.

When you develop a web page with Rich UI, you declare widgets much as you declare integers. However, the widgets are displayable only if your code also adds those widgets to the DOM tree. Your code can also update the tree (adding, changing, and removing widgets) in response to runtime events such as a user's clicking a button. The central point is as follows: Your main task in web-page development is to create and update a DOM tree.

When you work in the Design tab of the Rich UI editor, some of the tasks needed for initial DOM-tree creation are handled for you automatically during a drag-and-drop operation. When you work in the Source tab of the Rich UI editor or in the EGL editor, you can write code directly and even reference DOM elements explicitly.

In general terms, you create and update a DOM tree in three steps:
  1. Declare widgets of specific types: That is, button for buttons, TextField for text fields, and so on, and then customize the widget properties. For example, you might set the text of a button to "Input to Output," as in our example.
  2. Add widgets to the initial DOM tree.
  3. Alter the DOM tree by adding, changing, and removing widgets at those points in your code when you want the changes to be displayable.

We say that a widget or its changes are "displayable" rather than "displayed" because a widget in a DOM tree can be hidden from view.

At a given point in runtime processing, a widget can be the child of only one parent.

Note:
For details on a potentially important issue, see Rich UI memory management.
