The Table (visual) component is responsible
for recognizing tables. The Table (visual) component
is different from the Table (field) component
in that it does not require that the underlying host screen fields
line up vertically. It looks for columns in the selected region which
contain the column delimiter for each row in the selection. Rule of
thumb: If a region has the appearance of a table, the Table (visual) component should be able to recognize
it.
A recognized table can be rendered by the following widgets:

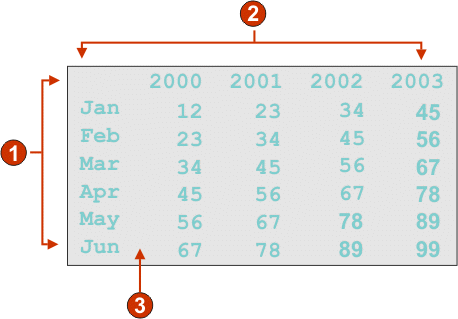

The following figure shows how a Table (visual) component
might appear on your host screen:
Figure 1. Table
(visual) component example
Rows (minimum row count = 1)
Columns (minimum column count = 1)
Column delimiter (a space)
The following settings can be configured for this component:
Column delimiter
Required. The string of characters which must exist in every row of the selected
region for the host screen column to be marked as a table column. If consecutive columns
are each marked as a delimiting column, only the last column is actually rendered as the
delimiting column of the generated table.
Row count above table as header(s)
To use the rows above the table as column headers, the user must update the number in the
Row count above table as header(s) field. This defines how many rows above the
table will be treated as column headers.
Note:
The column headers must be in protected fields.
If the row counts entered in the Row count above table as header(s) field
exceeds the number of available rows above the table, an error message will
appear.
Include empty rows
If selected, empty rows (rows without any visible text or input fields) will be
included in the rendered table or graph.
Rows to exclude
The comma-separated or ranged set of rows to exclude from the recognized table. This
setting is useful for hiding specific rows of data on a table or graph. The rows
represented by this value are based on the recognized table, not on the actual host
screen. Example values: 1,2,3...., 1,2-4, 3-5.
Columns to exclude
The comma-separated or ranged set of logical columns to exclude from the recognized
table. The columns represented by this value are based on the recognized table, not on
the actual host screen. Example values: 1,2,3....,
1,2-4, 3-5.
Minimum row count
The minimum number of rows the specified region must contain for the region to be
recognized as a table.
Note:
The number of recognized rows is evaluated
before the specified rows are excluded (see Rows to exclude).
Minimum column count
The minimum number of logical columns (not host screen columns) the specified region
must contain for the region to be recognized as a table.
Note:
The number
of recognized columns is evaluated before the specified columns are excluded (see
Columns to exclude).
