Parameter list

The parameter list that is passed to the CICS® VR batch backout ESDS delete exit.

Base cluster name, ESDS record length, ESDS record,
work area, action code

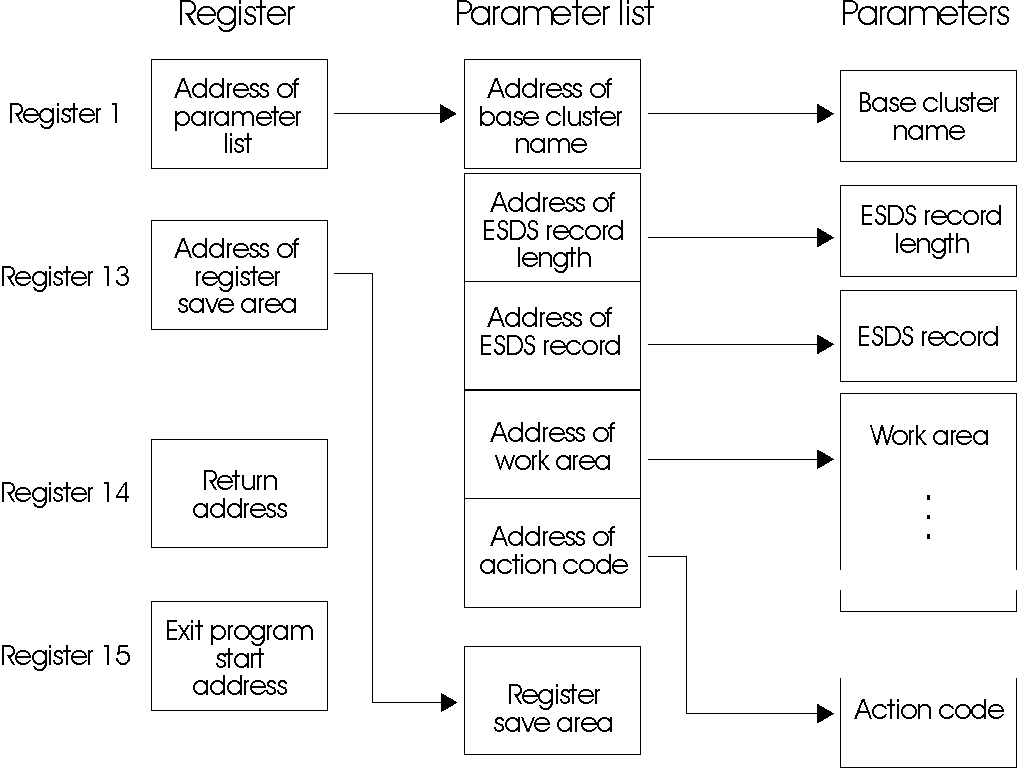

This figure shows how you find the parameters from the contents of register 1:

This figure lists the contents of the registers passed to the ESDS delete exit used with the CICS VR batch backout utility. Register 1 contains the address of the parameter list. The first fullword in the parameter list contains the address of the base cluster name. The second fullword in the parameter list contains the address of the ESDS record length. The third fullword in the parameter list contains the address of the ESDS record. The fourth fullword in the parameter list contains the address of the work area. The fifth fullword in the parameter list contains the address of the action code. Register 13 contains the address of the register save area. Register 14 contains the return address. Register 15 contains the exit program start address. — Figure 1. ESDS Delete Exit Parameters
