Full-text search architecture

This topic presents a high-level architecture view of the components that comprise the Rational® ClearQuest® full-text search feature.

The full-text search feature uses the Solr search server and Lucene information retrieval library technologies. The next figure shows the key software components that comprise the full-text search implementation. These components are described in the next sections.

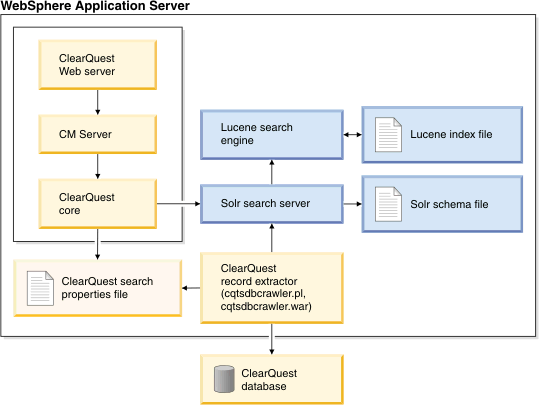

This figure illustrates the key software components that comprise the ClearQuest full-text search feature. There is a large rectangle, which represents WebSphere Application Server, connecting to a ClearQuest database below. Running within WebSphere Application Server are several processes that read from several files. In the upper-left portion of the WebSphere Application Server process is the ClearQuest Web server component, which connects to CM Server, which connects to ClearQuest core. ClearQuest core connects to the ClearQuest search properties file and the Solr search server. The Solr application includes the Solr search server, the Solr schema file, the Lucene search engine, and the Lucene index file. The ClearQuest record extractor also resides within WebSphere Application Server. The ClearQuest record extractor reads from the ClearQuest search properties file and the ClearQuest database, and sends ClearQuest records to the Solr search server to index.

Solr search server

The Solr search server is the underlying full-text search engine used by ClearQuest®. Solr is installed under and managed by WebSphere® Application Server. Solr sits on top of the Lucene search engine and provides convenient access for configuring, indexing, searching, and administering Lucene and its index. For more information about Solr, go to http://lucene.apache.org/solr/.

Solr schema file

The Solr schema file specifies the fields that Solr indexes. You configure the Solr settings based on your Rational® ClearQuest® schema.

Lucene search engine

The Lucene search engine is an open-source information retrieval library supported by the Apache Software Foundation and released under the Apache Software License. For more information about Lucene, go to http://lucene.apache.org/java/.

Lucene index file

The Lucene index file is the cornerstone of the Lucene information-retrieval library technology. The index is created by the Rational® ClearQuest® record extractor. The index is updated by commands sent from the record extractor to Solr, which in turn passes these commands on to the Lucene search engine.

Rational® ClearQuest® record extractor

The Rational® ClearQuest® record extractor is installed as two components: a component running under WebSphere® Application Server and a command-line tool. While the software that comprises these two components is identical, their use differs.

The command line record extractor provides batch extraction of Rational® ClearQuest® records. It is started by the administrator, usually once, to extract existing records from Rational® ClearQuest® and send them to Solr for Lucene to index. This mode of operation is called batch mode record extraction.

The record extractor that functions as a WebSphere® Application Server component provides continuous updates to the Lucene index. As new Rational® ClearQuest® records are added, modified, or deleted, the record extractor sends these records to Solr for Lucene to index. This mode of operation is called update mode record extraction. Once a record is indexed by Lucene, it is available for searching by using the Rational® ClearQuest® Web full-text search user interface.
