CICS® IA dependency-related components

CICS® IA comprises a number of components, which divide into collecting and reporting parts. The figures show how the dependency-related components of CICS® IA relate to each other.

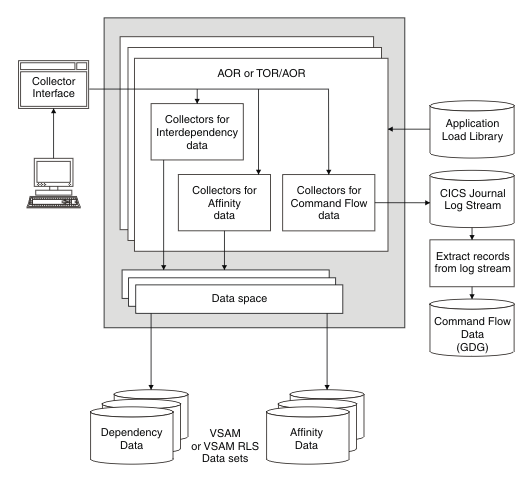

Figure 1. The Collector structure of CICS® IA components

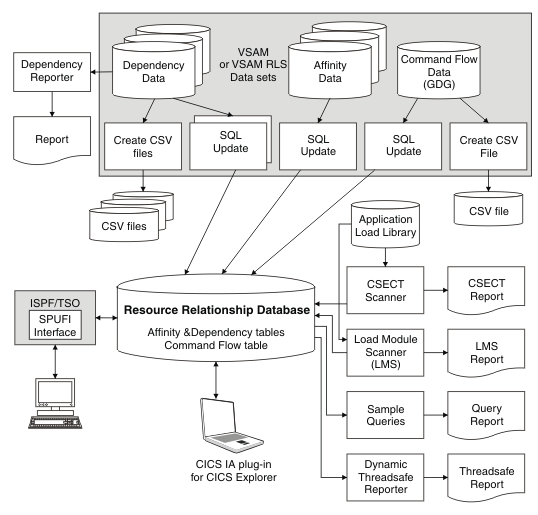

Figure 2. The reporting structure of CICS® IA dependency-related components
CICS® IA contains the following dependency-related components:
The Collector
The Collector is a CICS® transaction that runs in your CICS® region and intercepts selected CICS® and non-CICS programming commands. Depending on what you have specified, it records, in an MVS data space, details of either of the following:
  • The resources used by the commands
  • The potential affinities created by the commands

You can collect both dependency data and affinity data on the same region at the same time. The dependency data, affinity data, or both are saved to VSAM files.

The Dependency database objects
The Dependency database objects contain data extracted from the VSAM dependency file created by the Collector. It is updated periodically to add data from new or infrequently run applications.
The CICS® IA plug-in for CICS Explorer®
The CICS® IA plug-in for CICS Explorer® provides a graphical front end to CICS® IA. For more information, see the IBM® CICS® IA plug-in for CICS Explorer™ User Guide.
The Dependency Reporter
The Dependency reporter is a batch utility that you can use to convert the dependency data in the VSAM files into reports in a readable format. You might use this function if, for example, you do not have IBM® Db2®.
The Load Module Scanner
The Load Module Scanner is a batch utility that scans a load module library to detect those programs in the library that issue commands that might cause either of the following:
  • Transaction resource dependencies
  • Transaction affinities
It produces a printed report. The dependencies data that it collects is written to the Load Module Scanner database objects.
