Network overview

A IBM Workload Scheduler network consists of one or more domains arranged hierarchically. A IBM Workload Scheduler domain is a logical grouping of workstations, consisting of a domain manager and a number of agents.

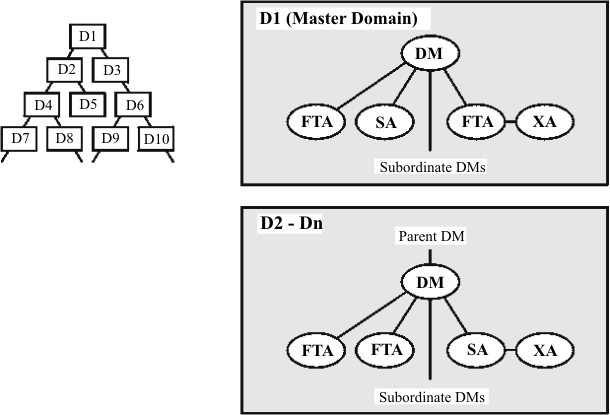

Figure 1. IBM Workload Scheduler network domain structure

Graphic showing how the domain structure works. It indicates that the structure can contain any number of tiers, with each domain manager being an agent of its parent domain.
