3270 Emulation via an SNA Gateway over a TCP/IP Network

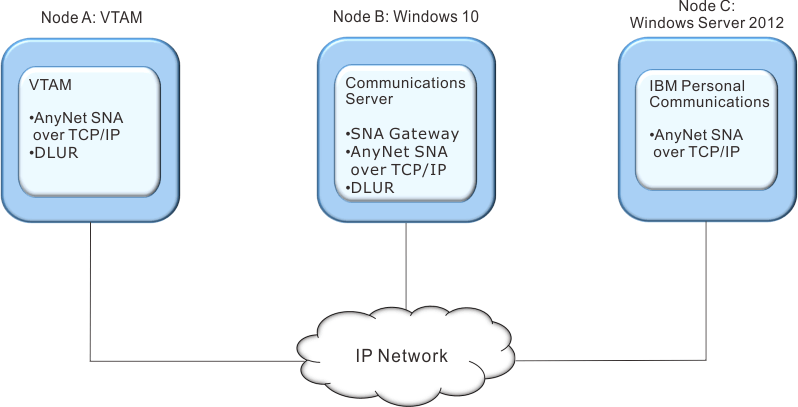

3270 Emulation via an SNA Gateway over a TCP/IP Network illustrates a configuration that supports dependent LU communication for downstream workstations over a single IP network. All three machines are running AnyNet® SNA over TCP/IP. As in the previous example, Node A is a dependent LU server (DLUS), and Node B is a dependent LU requester (DLUR). Configuration instructions for this example are given in Quick Beginnings.
