Default build descriptors

A hierarchy of default build descriptors makes the generation process more flexible.

You can specify default build descriptors at the following levels:
  • Workbench
  • Project
  • Source folder
  • Package
  • EGL source file

For information about how to specify build descriptors, see Setting the default build descriptors.

The hierarchy of default build descriptors

All EGL generation operations use the default build descriptor specified for the part being generated unless you override the default build descriptor by using the Generation wizard. To use the Generation wizard, right-click an EGL source file and click Generate With Wizard).

To determine the default build descriptor to use, EGL begins searching at the source file of the part being generated, and moves up the directory structure until it finds the first instance of a build descriptor.

When you create a project, EGL provides a projectName.eglbld build file and defines one or more Build Descriptor parts within this file. For each type of project, EGL specifies a particular default build descriptor from this file as the default build descriptor at the project level:
  • For a Rich UI Project, EGL specifies the projectNameJavaScriptBuildOptions Build Descriptor part.
  • For a General Project, the Build Descriptor part that EGL specifies depends on the Target Runtime Platform that you select when you create the project:
    • For Java™, projectNameJavaBuildOptions
    • For COBOL, projectNameCOBOLBuildOptions
  • For a Web or Plug-in Project, EGL specifies the projectNameJavaBuildOptions Build Descriptor part
Note:
Although EGL initially specifies these default values, you can delete them. If you delete them and do not specify custom default build descriptors at a lower level, EGL must search the workbench (preferences) level for resolution. If you have not specified custom default build descriptors at the workbench level, an error results and generation fails.

For more information about how EGL resolves default build descriptors, see "Build descriptors, target platforms, and the debugger" in this topic, as well as the examples.

Build descriptors, target platforms, and the debugger

You can specify different default build descriptors for different situations. There are two categories of default build descriptors:
  • Debug
  • Target platform
For debug, specify different default build descriptors based on the type of application you are developing:
  • EGL uses the Interpretive debugger for parts that are generated to Java™ or COBOL. This debugger works by interpreting the EGL source code.
  • EGL uses the JavaScript debugger for parts that are generated to JavaScript™. This debugger works by running the generated code in a browser.
Specify different default build descriptors based on the target platforms for which you can generate your EGL code:
  • COBOL
  • Java™
  • JavaScript™

Within a category, all of the values are used at a given level if any value is specified at that level. This rule means that if EGL is looking for a Build Descriptor in the target platform category and finds a match at any level, it does not continue to look on higher levels for further Build Descriptor parts.

Example 1: Generating a Library for both client and server

You can generate the same library for both Java™ and JavaScript™ so that the library can run on both client and server. Here is an example Rich UI project:
UIProject  <- JavaScript default build descriptor (system)
  EGLSource
    handlers
      MyHandler.egl
    libraries
      MyLibrary.egl
    UIProject.eglbld
  ...

Because this project is customized for Rich UI, EGL specified a project-level default build descriptor for the JavaScript™ target platform when you created the project. To enable both Java™ and JavaScript™ generation for MyLibrary.egl, specify both a Java™ and a JavaScript™ default build descriptor for the library.

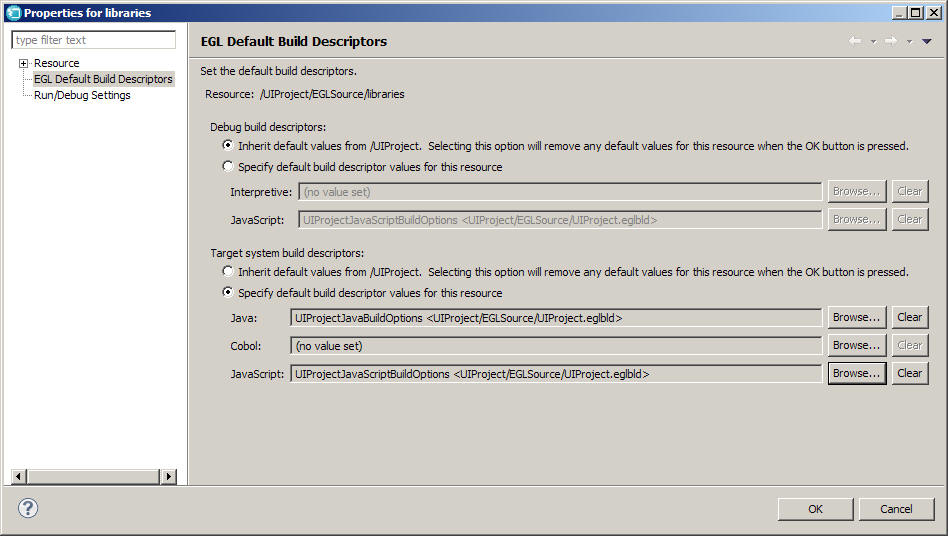

The following screen capture shows those Build Descriptor parts specified as properties of the libraries folder, which contains the MyLibrary.egl file. You must specify both, because of the rule that all values are used at a given level if any value is specified.
Target system build descriptors are set for Java and JavaScript.
Here is an updated listing of the project contents:
UIProject  <- JavaScript default build descriptor (system)
  EGLSource
    handlers
      MyHandler.egl
    libraries  <- Java and JavaScript default build descriptors (user)
      MyLibrary.egl
    UIProject.eglbld
  ...
EGL resolves the default build descriptors as follows:
  • For the MyLibrary.egl library, EGL begins with the source file and moves up the directory structure until it reaches the package level. At that level, EGL finds custom default build descriptors for both Java™ and JavaScript™. If you were careful to use only those EGL types in your source file that were compatible with Java™ and JavaScript™, EGL generates both versions of the library.
  • For the MyHandler.egl file, EGL begins with the source file and moves up the directory structure until it reaches the project level. At that level, EGL finds the system default build descriptor for JavaScript™ and generates a .js file. The .js file is embedded in an HTML file during deployment.

Example 2: Generation failure

This example shows what happens when you specify a default build descriptor option at too high a level. Assuming the same situation as in the previous example, you can place the default build descriptor for Java™ at the project level:
           <- JavaScript default build descriptor (system)
UIProject  <- Java default build descriptor (user)
  EGLSource
    handlers
      MyHandler.egl
    libraries
      MyLibrary.egl
    UIProject.eglbld
  ...
EGL resolves the default build descriptors as follows:
  • For MyLibrary.egl, EGL begins with the source file and moves up the directory structure until it reaches the project level, where it finds default build descriptors for both Java™ (custom) and JavaScript™ (system). EGL generates both versions of the library, as before.
  • For MyHandler.egl, EGL begins with the source file and moves up the directory structure until it reaches the project level, where it finds the same default build descriptors for both Java™ and JavaScript™. Because it cannot generate a Rich UI Handler as Java™, it terminates with an error.

Example 3: Generating a UI and a Service in the same project

Create a custom default build descriptor at the package level to manage Java™ generation. This project contains a dedicated service rather than a Library:
UIProject  <- JavaScript default build descriptor (system)
  EGLSource
    handlers
      MyHandler.egl
    services  <- Java default build descriptors (user)
      MyService.egl
    UIProject.eglbld
  ...
EGL resolves the default build descriptors as follows:
  • For the MyService.egl service, EGL begins with the source file and moves up the directory structure until it reaches the package level. At that level, EGL finds a custom default build descriptor for Java™ and generates the Java™ Service.
  • For the MyHandler.egl file, EGL begins with the source file and moves up the directory structure until it reaches the project level. At that level, EGL finds the system default build descriptor for JavaScript™ and generates a .js file.

Example 4: Generating a UI and a Service in separate projects

You can avoid customizing the default build descriptors entirely by placing your Rich UI Handler and your Service in separate projects. In the following diagram, the UIProject is again a Rich UI project, and the ServiceProject is a General project:
ServiceProject  <- Java default build descriptor (system)
  EGLSource
    services
      MyService.egl
    ServiceProject.eglbld
  ...
UIProject  <- JavaScript default build descriptor (system)
  EGLSource
    handlers
      MyHandler.egl
    UIProject.eglbld
  ...
EGL resolves the default build descriptors as follows:
  • For the MyService.egl file, EGL begins with the source file and moves up the directory structure until it reaches the project level. At that level, EGL finds the system default build descriptor for Java™ and generates the Java™ service.
  • For the MyHandler.egl file, EGL begins with the source file and moves up the directory structure until it reaches the project level. At that level, EGL finds the system default build descriptor for JavaScript™ and generates a .js file.

Master build descriptors and build descriptor chains

Your system administrator might require that you use a master build descriptor. This kind of build descriptor specifies information that cannot be overridden and that is in effect for every generation that occurs in your installation of EGL. The system administrator identifies that part by name, along with the EGL build file that contains the part. For information about how to set the master build descriptor, see Setting the master build descriptor.

You can create a chain of build descriptors from the generation-specific build descriptor, so that the first in the chain is processed before the second, and the second before the third. When you define a given build descriptor, you begin a chain (or continue one) by assigning a value to the nextBuildDescriptor build descriptor option. Your system administrator can use the same technique to create a chain from the master build descriptor. The implication of chaining information is described later.

Any build part that is referenced by a build descriptor must be visible to the referencing build descriptor. For example, the build part can be a linkage options part or a resource associations part, or the next build descriptor.

Precedence of options

For a given build descriptor option, the value that is initially processed at generation time stays in effect. The overall order of precedence is as follows:
  1. The master build descriptor
  2. Certain build descriptor options containing override values that are specified at generation time, if you use the Generate With Wizard menu option; however, these options cannot override values set in the master build descriptor.
  3. The generation-specific build descriptor, followed by the chain that extends from it
  4. The chain that extends from the master build descriptor
The benefit of this scheme is convenience:
  • The system administrator can specify unchanging values by setting up a master build descriptor.
  • You can use a generation-specific build descriptor to assign values that are specific to a particular generation.
  • A project manager can specify a set of defaults by customizing one or more build descriptors. In most of these cases, the generation-specific build descriptor points to the first build descriptor in a chain that was developed by the project manager. Default options can be useful when your organization develops a set of programs that must be generated or prepared similarly.
  • The system administrator can create a set of general defaults by establishing a chain that extends from the master build descriptor. It is unusual to use this feature.
  • If you must override certain build descriptor options, such as the destination user ID or password, you can do it without setting up a different Build Descriptor part.

If a given build descriptor is used more than once, only the first access of that build descriptor is effective. Also, only the first specification of a particular option is effective.

Example 5: Build descriptor chains

Assume that the master build descriptor contains these hypothetical option-and-value pairs:

  OptionX                02
  OptionY                05

In this example, the generation-specific build descriptor, which is called myGen, contains these option-and-value pairs.

  OptionA                20
  OptionB                30
  OptionC                40
  OptionX                50

As identified in myGen, the next build descriptor is myNext01, which contains these pairs:

  OptionA                120
  OptionD                150
As identified in myNext01, the next build descriptor is myNext02, which contains these pairs:
  OptionB                220
  OptionD                260
  OptionE                270

As identified in the master build descriptor, the next build descriptor is myNext99, which contains these pairs:

OptionW                  myUserID
OptionZ                  99

EGL accepts option values in the following order:

  1. Values for options in the master build descriptor:
      OptionX             02
  OptionY             05

    Those options override all others.

  2. Values in the generation-specific build descriptor myGen:
      OptionA             20
  OptionB             30
  OptionC             40

    The value for OptionX in myGen was ignored.

  3. Values for other options in myNext01 and myNext02:
      OptionD             150
  OptionE             270

    The value for OptionA in myNext01 was ignored, as were the values for OptionB and OptionD in myNext02.

  4. Values for other options in myNext99:
     OptionW             myUserID
 OptionZ              99

  5. In addition, if you use the Generation wizard, you can choose to override certain build descriptor options, such as the destination user ID and password, for the system where the generation output is going to be prepared for deployment. For example, if OptionW in myNext99 is the destUserID build descriptor option, and you use the Generation wizard, you can set or change the value of OptionW at generation time.
