Using the Project Explorer to Export the EGL Dependency Graph

This topic describes the procedure to generate the EGL Dependency Graph using the Project Explorer.

Follow the below steps for generating an EGL Dependency Graph of a project:

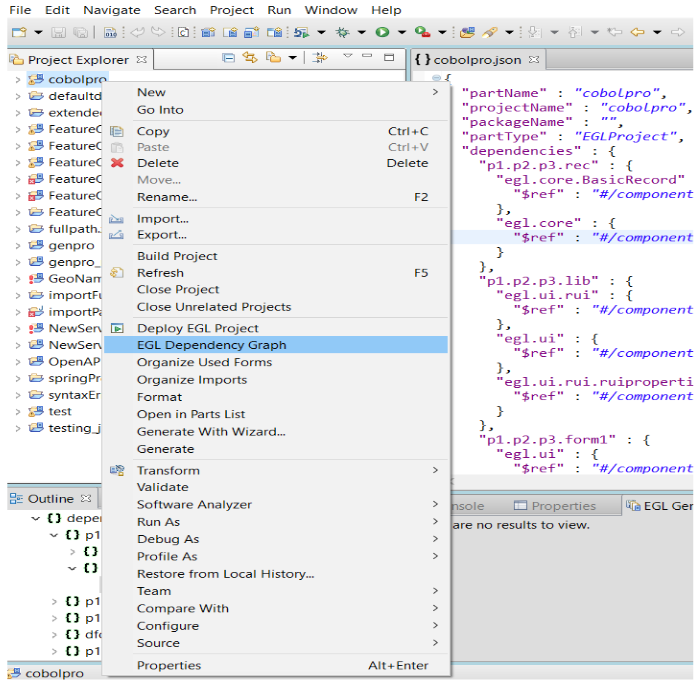

Go to Project Explorer and right-click on the required project.
Select the EGL Dependency Graph.

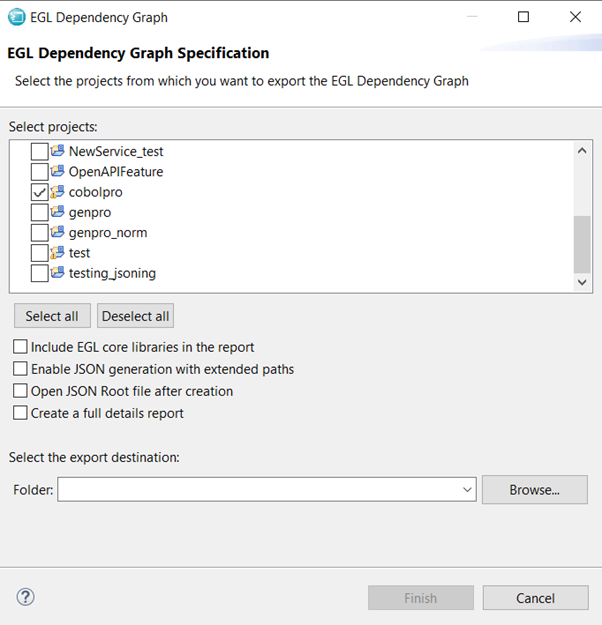

An EGL Dependency GraphSpecification wizard will appear.
Note:
- By default, your project is already selected. If required, select more projects.
- You can select or deselect all the projects using the Select all and Deselect all options, respectively.
Customize the output of the JSON files by using the export options.
Browse and select the output destination folder.
Click Finish. The JSON files will be created in the destination folder.
